Preon 1 Specifications

LED: CREE XP-G R5
Max Output: 70 Out-the-front (OTF) lumens
Material: Hard-anodized Aircraft-grade Aluminum
Lens: Optical-grade glass lens with anti-reflective coating on both sides
Battery: One AAA, included (see voltage range to select acceptable batteries for this light)
Water resistance: IPX-8
Operating Voltage Range: 0.9V-3.0V
Seven Output Modes:
Low: 1.8 OTF Lumens, 23 hours
Medium: 8.5 OTF Lumens, 6 hours
High: 70 OTF Lumens, 0.8 hours
Strobe 1.6 hours
SOS 2.4 hours
Beacon (Hi) 8 hours
Beacon (Lo) 40 hours

Dimensions:
Length: 2.95 inches
Diameter: 0.55 inches
Weight: 0.6 ounces

Included Accessories

Removable black clip
O-ring
Split-ring for keychain attachment
One AAA battery

Operation

Operating your Preon 1 is simple. Make sure its batteries are inserted with the positive side (+) toward the head. Ensure the tailcap is tightened. To turn the Preon on, tighten the bezel (the â?˜headâ?™ of the light) fully down. The Preon will turn on when the bezel is fully tightened, and turn off when the bezel is loosened.

Selecting Regular Outputs

To select a different level of constant output, turn the Preon off and then on again within 1 second. This will select the next level of constant output in the following sequence:

Low -> Medium -> High

If the Preon is turned off for 2 seconds or longer, it will revert back to Low.

Selecting Special Outputs

The Preon has 4 special output modes: Strobe, S.O.S., Beacon (Hi), and Beacon (Lo). To access these modes, quickly switch through two full 'cycles' of the regular outputs, starting with Low. These two full cycles must be completed within 3 seconds:


Low -> Medium -> High -> Low -> Medium -> High -> Special Outputs

You can continue to cycle through the special outputs in the following sequence:


Strobe -> S.O.S. -> Beacon (high) -> Beacon (low)

After Beacon (Lo) mode, the output reverts back to Regular Low. Both Beacon modes will first flash 5 times and then once every 10 seconds.

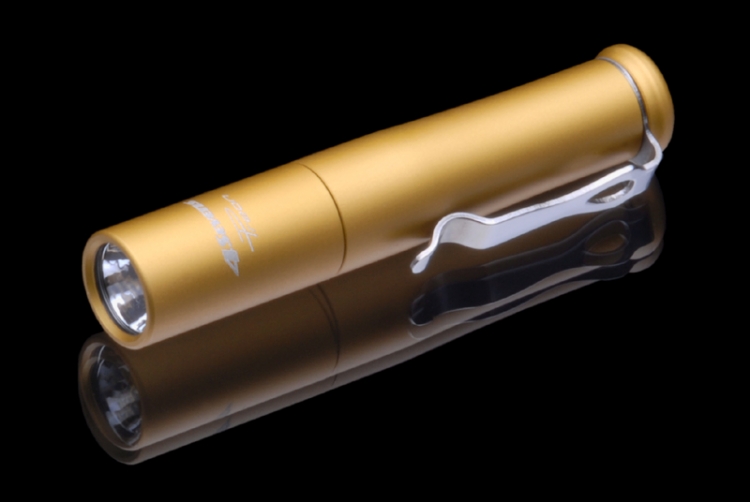

제품 명 : preon 1 Golden Yellow

- 일반모드 : 헤드를 돌리면 On후, Low, Mid, High순으로 켜짐
- 히든모드 : 일반모드 (3단계 밝기)를 빠르게 2회 반복하면
Strobe,SOS,Beacon순으로 작동됨

* 제품 사양

- LED : Cree XP-G R5 LED
- 최대 밝기 : 70루멘
- 기능
일반모드 : 1.8루멘 (23시간) => 8.5루멘 (6시간) => 70루멘 (45분)
히든모드 : Strobe (1.6시간) => SOS (2.4시간) => Beacon(40시간),
- 밧데리 : AAA * 1개
- 반사경 : OP 의 반사경
- 길이 : 7.49cm
- 헤드 직경 : 1.4cm
- 무게 : g (배터리 미포함)
- 몸체 : Hard-anodized Aircraft-grade Aluminum
- 스위치 : 트위스트 스위치.
- 구성품 : Preon 1 Titanium, 오링, 랜야드링, AAA, 설명서
